Carbide Burrs

Tungsten carbide rotary burrs are small cutting tools used in grinding, shaping, and de-burring for materials like ceramics, stone, steel, aluminum, plastics, and hardwood.

It offers a high stock removal rate with a smooth milling action to reduce vibration and noise. And it delivers large and good chip removal.

Can be customized according to customer design, OEM laser marking customer brand trademark.

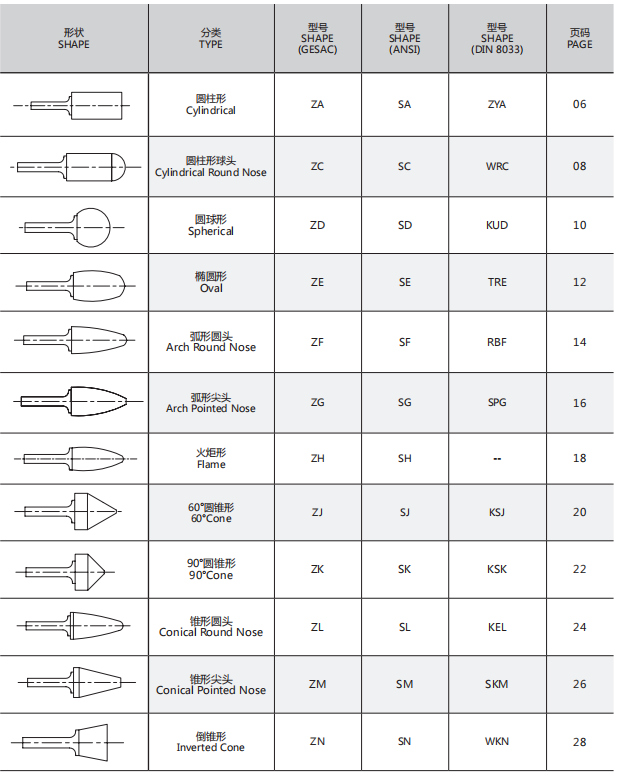

1、Carbide Burr Blanks with Available Shapes



2、Carbide Burrs

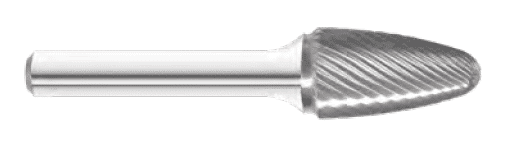

2.1、Single Cut



Single cut carbide burr is a general-purpose tool designed for cast iron, steel, some copper and brass, and other ferrous materials. It will give good material removal and a good workpiece finish.

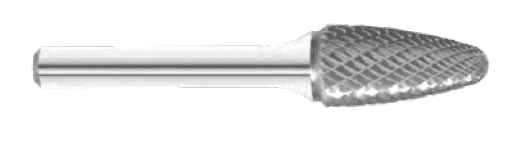

2.2、Double Cut



The double-cut allows for rapid stock removal in harder materials. The addition of the left-hand flutes reduces the pulling action, which allows for better operator control. It reduces the size of the chips, and it can be used at slower than normal speeds.

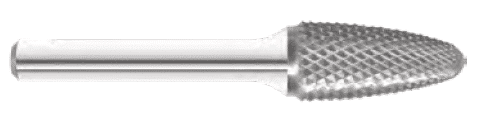

2.3、Diamond Cut


The diamond cut is very effective in heat treated and tough alloy steels, producing extremely small chips. It offers very good operator control with good stock removal at the sacrifice of finish. The diamond grind will reduce tool life.

2.4、Fast Mill Cut


For use on non-ferrous and non-metallic materials. It is designed for rapid stock removal with minimum chip loading.

3、For more information, please refer to HYW Burr Blanks product brochure
