Anti-Vibration Carbide Turning Bar

1、Super-hard tungsten carbide bar using unique carbide formula manufacturing with tenacity and durability to achieve anti-Vibration,high hardness and high rigidity used for long deep hole machining (10-12D).
2、All specification have internal coolant hole,that help deep hole machining with good Performance
3、Straight shank structure, processing depth can be adjusted according to the requirements.
4、This product adopts welded steel cutter head position to improve the rigidity of the blade and make the blade position strong and durable. At the same time, it does not affect the vibration resistance of the cutter bar and improve the life of the insert.
5、lmproves insert life, improves product finish and precision, reduce the number of insert change adjustment time and improve work efficiency.
6、According to the cutting characteristics of each insert, the insert holder has a unique cutting angle design which greatly improves the service life of the insert.
7、The insert holder head has a unique design, which is less weight.So it improves the vibration resistance.

1、Anti-Vibration Carbide Turning Bar

1.1、Anti-Vibration Carbide Turning Bar CCA-SCLCR Series

1.2、Anti-Vibration Carbide Anti-Vibration Carbide Turning Bar CCA-SDUCR Series

1.3、Anti-Vibration Carbide Turning Bar CCA-STUPR Series

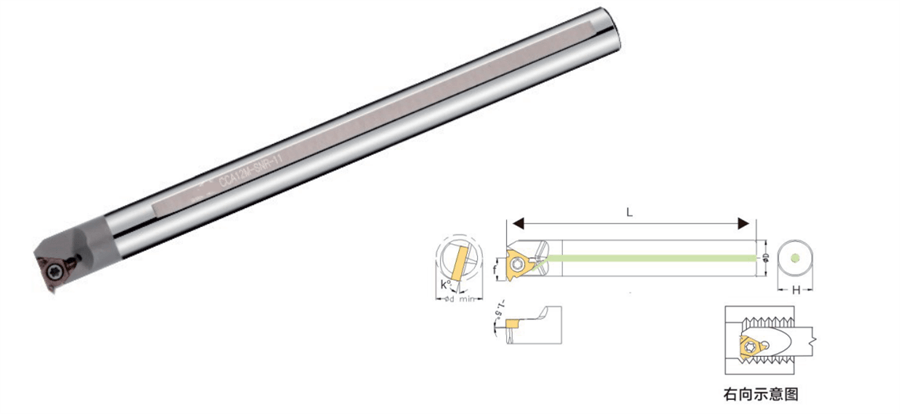

1.4、Anti-Vibration Carbide Turning Bar CCA-SNR Series


2、Damping Turning Tool

2.1、Anti-vibration with Damper Turning Tool Bar CGA-HIseries

2.2、Shock Absorbing Damper Carbide Bar CCA-HI Series

2.3、SteelDamper Turning ToolBar CDA-HIseries

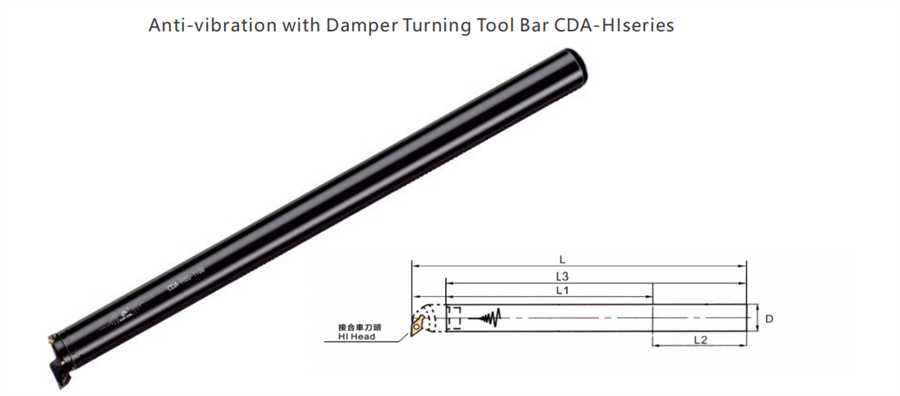

2.4、Anti-vibration with Damper Turning Tool Bar CDA-HIseries

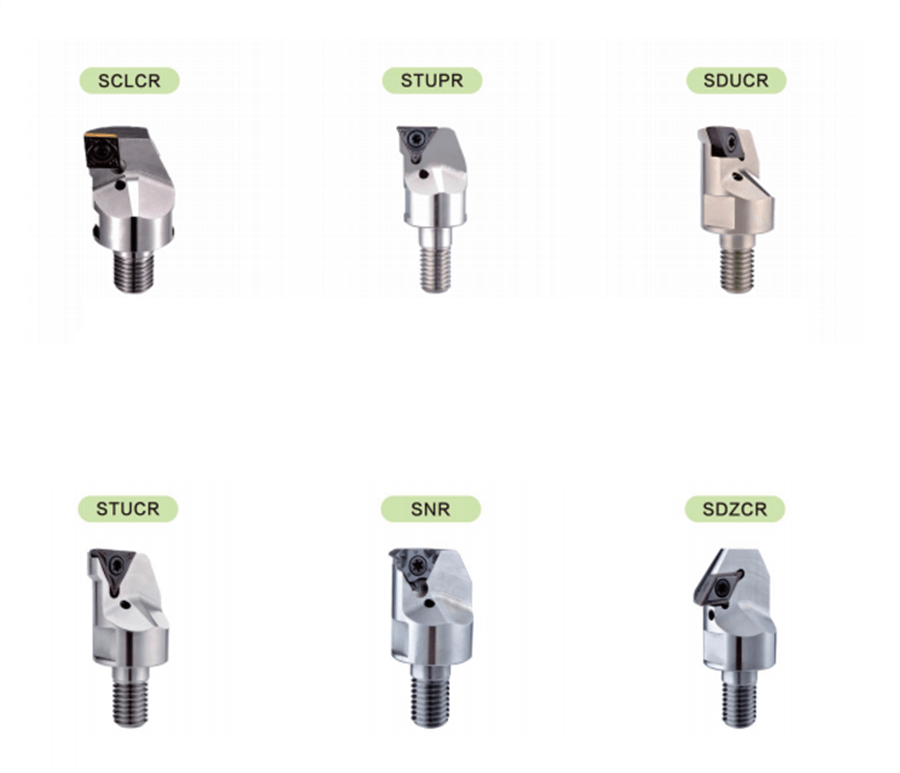

3、Modular Cutter Heads

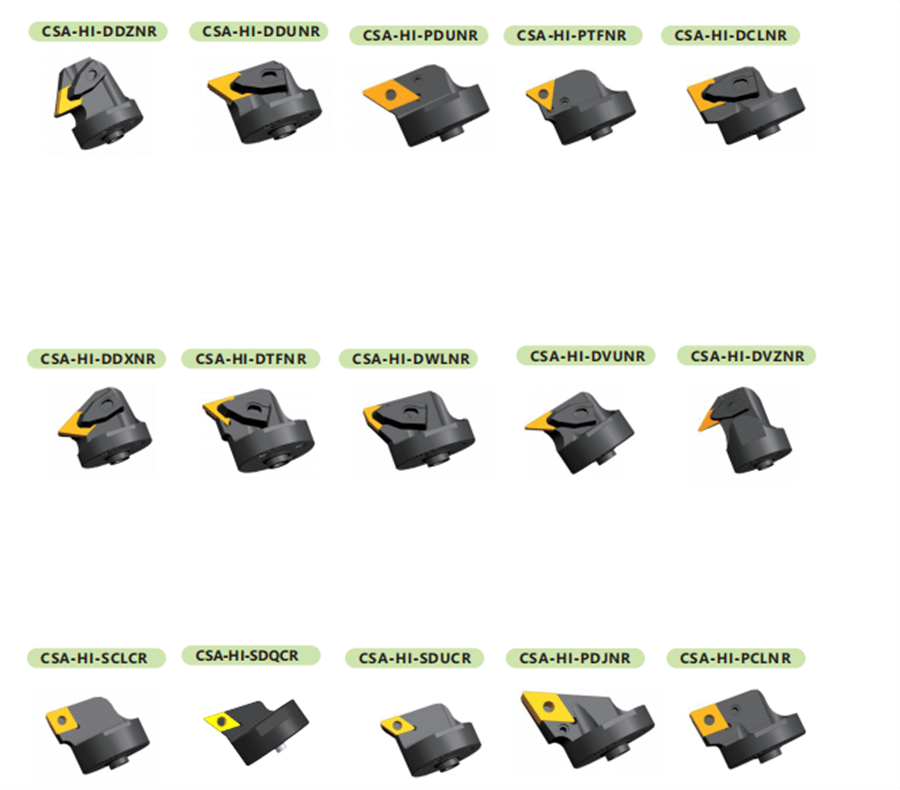

4、Replaceable Turning Tool Head


5For more information, please refer to HYW Anti-Vibration Carbide Turning Bar product brochure
