Deburring Tool
Classification:Technical support Release time:2024-12-01 10:48:13
Tool Types: Solid Deburring Chamfering Tool; Modular Deburring Chamfering Tool; Suitable for Any Machine Tool: The tool can be clamped on any rotating machine, such as drilling machines, milling machines, lathes, CNC machines, and electric tools. Wide Range of Applications: It can effectively address the deburring and chamfering needs encountered in ordinary machining parts, as well as precision and difficult-to-chamfer components. Applications include military, automotive industry parts, engine blocks, cylindrical shapes, spherical shapes, through-holes, and internal wall holes, etc.

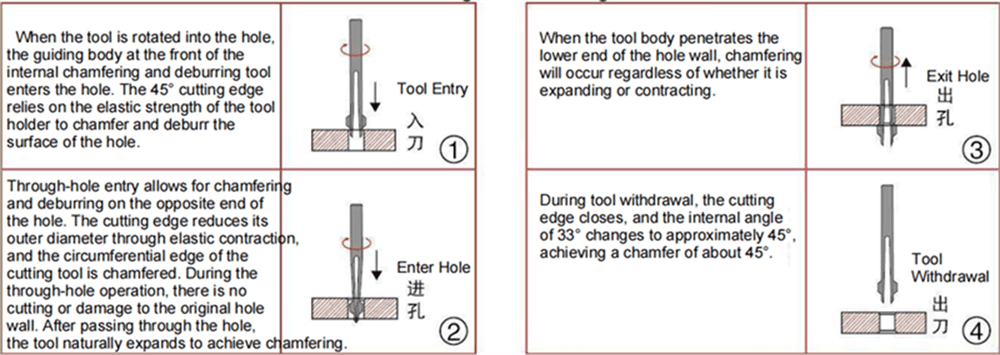

Solid Deburring Chamfering Tool Machining Principles

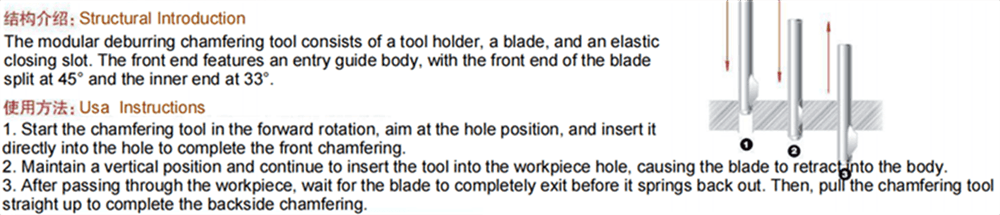

Modular Deburring Chamfering TooMachining Principles

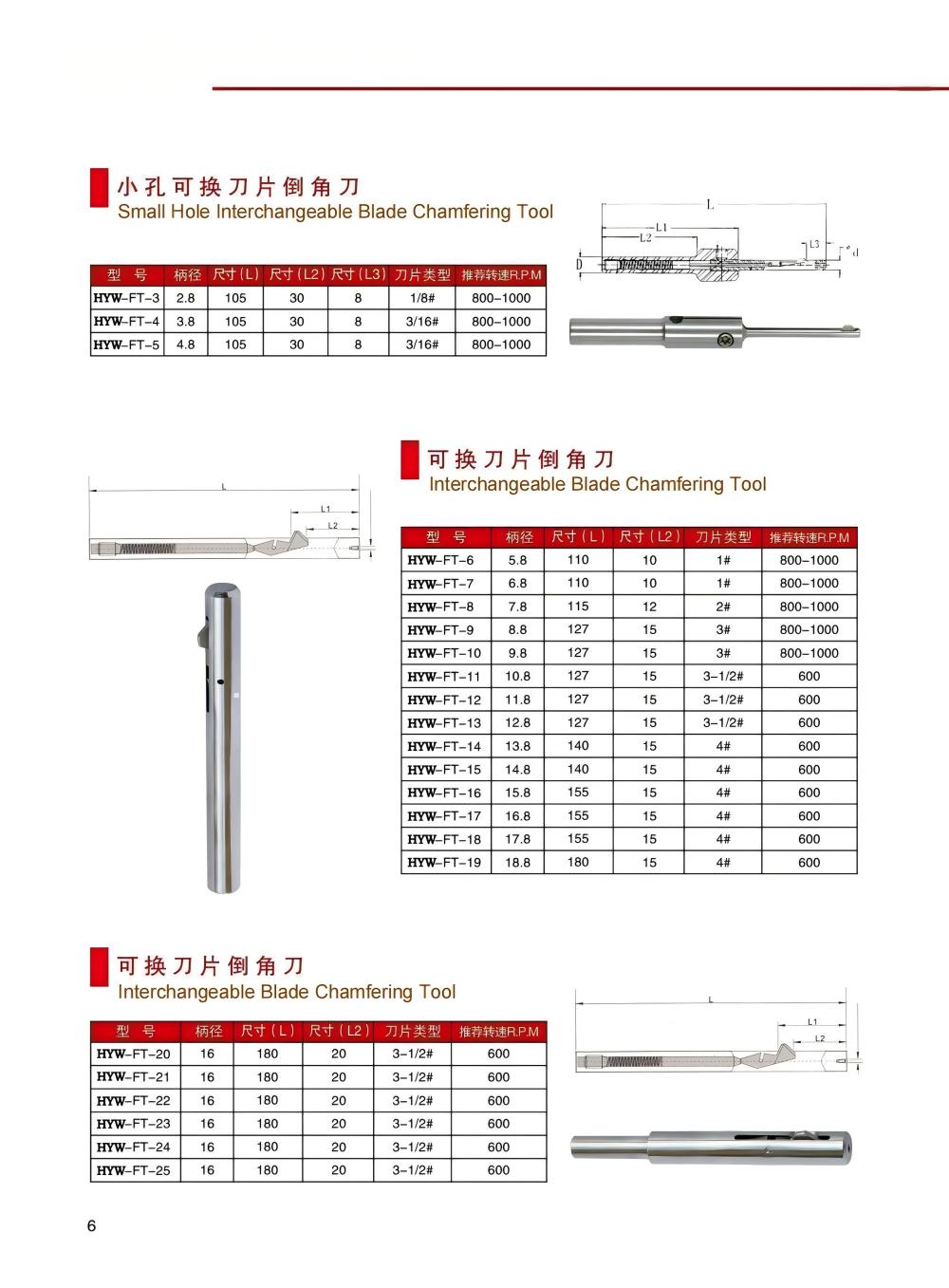

Tool Selection

The tool design is simple, efficient, and stable. During the machining process, there is no need for a complex or timeconsuming pre-adjustment process. The diameter of the drilled hole directly determines the required tool size. You need to providethe following dimensions

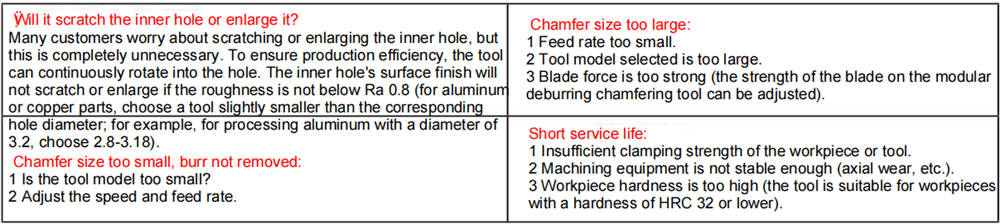

How to address issues arising during the deburring and chamfering process





Feel free to reach out for inquiries. We will also share any other good tools in a timely manner.
