Differences in tool holder Between BT, SK, ISO, PSC, and HSK

What are the main differences between each taper?

The taper angles of tool holders, such as BT, SK, ISO, PSC, and HSK, vary because they are designed for compatibility with different types of machine tools and cutting applications. Different machine tools have unique spindle taper angles, which dictate the types of tool holders that can be used. Moreover, various cutting tools—such as end mills, drill bits, and taps—may require specific tool holders to ensure a secure and stable connection to the machine spindle.

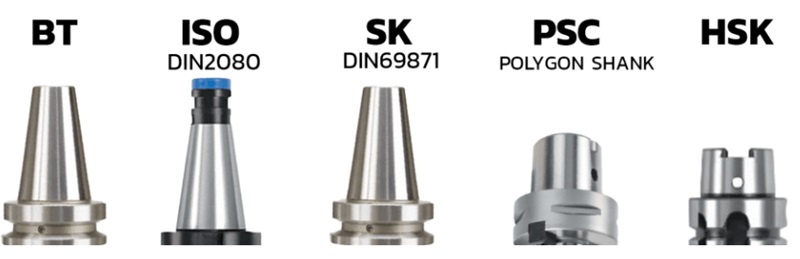

Common types of tool holder tapers include:

· BT (popular in Japan and widely used in CNC machines)

· SK (DIN69871, commonly used in Europe)

· ISO (DIN2080, another European standard)

· HSK (a high-speed, high-precision taper often used in advanced machinery)

· PSC (Polygon Shank, which offers high torque transmission)

The choice of taper for a tool holder depends on the machine tool being used and the specific application. Selecting the correct taper is crucial to ensuring compatibility, optimal performance, and reliability in machining operations.

Generally Speaking, On Which Machine Tools Are These Tool Holders Installed?

· BT (also known as BT MAS): BT tool holders are commonly used in machining centers in Japan, South Korea, Taiwan, and the United States. They are a popular choice for CNC machines in these regions.

· SK (also known as DIN69871): SK taper tool holders are primarily used in machining centers in Germany and other parts of Europe. They are also compatible with machining centers in the United States that use CAT40 or CAT50 tool systems.

· ISO (also known as DIN2080): ISO tool holders are commonly found on traditional, manual milling machines, which may use either manual or automatic pull studs.

· HSK (also known as DIN69873): HSK tool holders are mainly used in high-speed CNC machining centers, especially those with spindle speeds of 10,000 RPM or higher. Developed in Germany, HSK technology is widely used in Europe and other regions due to its superior performance in high-speed applications. The HSK design features a hollow shank that enables more effective power transmission to the tool, providing enhanced accuracy, stability, and cutting performance.

· PSC (Capto-compatible): PSC tool holders, which are compatible with the Capto system, are ideal for use in CNC machine tools. Their polygonal shank design ensures a strong and stable tool clamping force, improving tool stability during machining.

How are they clamped onto the machine tool, and why?

BT, SK, and ISO tool holders feature a steep taper, and they are typically clamped into the machine tool using a pull rod positioned at the rear of the taper. This traditional clamping method, while effective, may lose accuracy at very high speeds. These tool holders often have a taper ratio of 1:10.

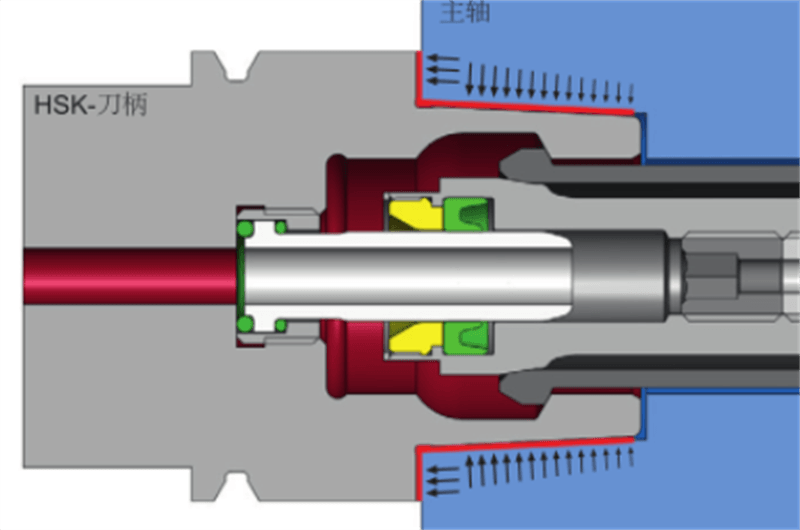

The HSK taper (Hollow Shank Taper, from the German "Hohlschaftkegel") is classified as a "double contact" system. This means it maintains contact both at the spindle taper and the flange on the spindle surface, ensuring a secure connection in both axial and radial directions. This design provides resistance to axial movement and prevents lateral shifting of the tool, making it ideal for high-speed operations.

The taper ratio for HSK holders is 7:24, and different types of HSK holders include HSK-A, HSK-C, HSK-E, and HSK-F. The key factors that influence the choice of HSK taper are the specific requirements for speed or torque in a given application.

What are the available output types for each type?

BT, SK, and HSK tapered tool holders are the most commonly used tool holders in the UK manufacturing industry. As a result, these systems typically offer a wide range of options. This includes standard performance tool holders such as side-fixed tool holders, cylinder clamps, and face milling tool holders, as well as high-performance options like hydraulic and heat shrink tool holders.

ISO (DIN 2080) tool holders are now somewhat outdated, and as such, you will generally find more traditional options, including side-fixed tool holders and cylinder clamps. This is largely due to the spindle speed limitations of DIN 2080 machine tools, which makes it impractical to use fixtures designed for higher speeds.

Finally, PSC (Capto-compatible) tool holders are used for both CNC milling machines and lathes. In milling operations, traditional options include ER cylinder clamps, side-fixed tool holders, and face milling tool holders. For turning operations, PSC tool holders accommodate tools like boring bars, turning tools, and thread turning tool holders.
