Tungsten Alloy Electrode
2. Product standard: ISO 6848 ANSI/AWS A5.12/A5.A2M-98;
3. Diameter: 0.5-30 mm;
4. Length: 150 mm, 175 mm, 178 mm, or any length requested by the customer;
5. We can provide users with high-quality tungsten electrodes of all varieties, grades, and specifications.
1、Material Introduction
1.1、Tungsten rare earth alloy refers to a tungsten alloy composed of tungsten and rare earth oxides.The addition amount of rare earth oxides is generally 0.3% to 4.0%. They exist as dispersed particles in tungsten rare earth alloys, playing a dispersion
strengthening role, improving the high-temperature strength, recrystallization temperature, and high-temperature creep performance of tungsten rare earth alloys.
1.2、Tungsten rare earth alloys also have excellent electronic emission performance, arc erosion resistance, good arc stability and controllability.
1.3、Tungsten rare earth alloys are mainly used as electrodes for arc welding, cutting, and triggering. Depending on their different electrode characteristics,
they can be applied under different usage conditions.
2、Specifications and performance
| Name | Brand | Current | Welding process | Characteristics | Application |
| Composite tungsten electrode | WR20 | AC/DC high current | Automatic welding, robot welding, cold welding, aluminum welding, etc | Easy to start arc, excellent arc ignition performance and stability, can replace thorium tungsten | Non alloy and low alloy steel, stainless steel, aluminum alloy, magnesium alloy, titanium alloy, nickel alloy, copper alloy, thermal spraying, special light source anode and cathode, etc |
| Lanthanum tungsten electrode | WL10 WL15 WL17 WL20 | DC high current | Automatic welding and manual welding are the main methods | Easy to start arc, excellent arc ignition performance and stability, can replace thorium tungsten | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, Thermal spraying, special light source anode and cathode, etc |
| Cerium tungsten electrode | WC20 | DC low current | Automatic welding and manual welding are the main methods | Easy to start arc, excellent arc ignition performance and stability, low electron escape work, can replace thorium tungsten under low current conditions | Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy,Thermal spraying, special light source anode and cathode, etc |
| Thorium tungsten electrode | WT10 WT20 WT30 WT40 | DC high current | Automatic welding and manual welding are the main methods | Easy to start arc, excellent arc ignition performance and stability, good high-temperature performance, long service life under high current, but with certain radioactivity | Non alloy and low alloy steel, stainless steel, aluminum alloy, magnesium alloy, titanium alloy, nickel alloy, copper alloy, thermal spraying, special light source anode and cathode, etc |
| Yttrium tungsten electrode | WY20 | DC high current | Mainly automatic welding and robot welding | Strong permeability, slender arc beam, and high degree of compression; Mainly used in military and aerospace industries. | Non alloy and low alloy steel, stainless steel, aluminum alloy, magnesium alloy, titanium alloy, nickel alloy, copper alloy, thermal spraying, special light source anode and cathode, etc |

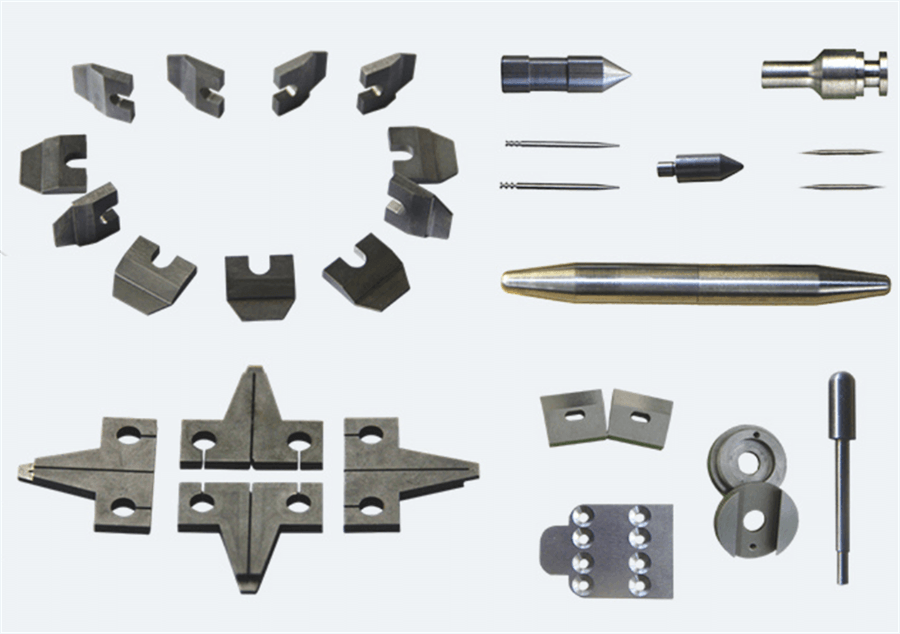

3、Irregular tungsten electrode
