Product Introduction:

Tungsten sputtering targets can form tungsten coatings on various substrates through magnetron sputtering technology, which are thin film transistor

components used in TFT-LCD screens. Due to its higher melting point than molybdenum, tungsten is more stable and suitable for large screens, meeting

the needs of higher image clarity and contrast. Product features:

(1) Ultra high density

High density target materials have high sputtering efficiency and can increase the sputtering area per unit time. We achieve almost 100% density of tungsten

target material through large rolling deformation, with a density of 19.3g/cm3, which can greatly avoid particle splashing caused by sudden release of pores

in the solid, thereby improving the quality of the thin film.

(2) Fine and uniform grain size

For the same target material, the sputtering rate is faster when the grain size is small; The thickness distribution of the sputtered deposited thin film is uniform.

The target material we produce through special processes has a small and uniform grain size, with a grain size of approximately 50 um in the vertical rolling

direction and less than 100 um in the rolling direction.

(3) Wide selection of target material types

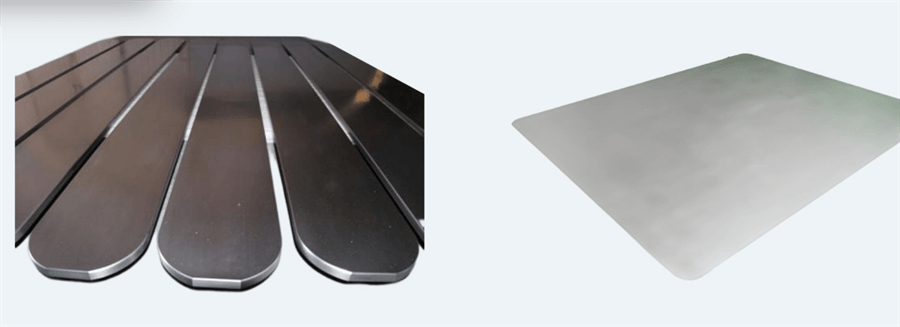

We can provide you with many types of tungsten sputtering targets, which can be divided into tungsten square targets, tungsten bar targets, and tungsten tube

targets according to their shapes. According to material classification, it can be divided into pure tungsten targets and tungsten alloy targets.

2、Specifications

3、Product application

Tungsten sputtering targets can be used to manufacture thin film transistors for TFT-LCD screens, as well as for microelectronic components such as

frequency filters. Tungsten alloy targets can be used in applications such as CIGS thin film solar cells and electrochromic glass.

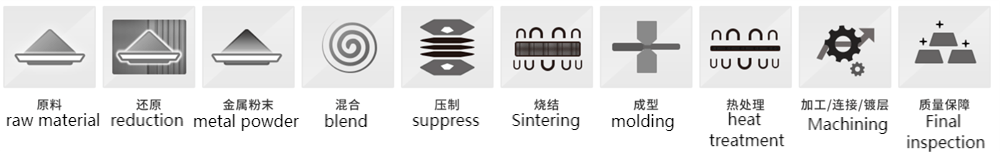

4、Technology
